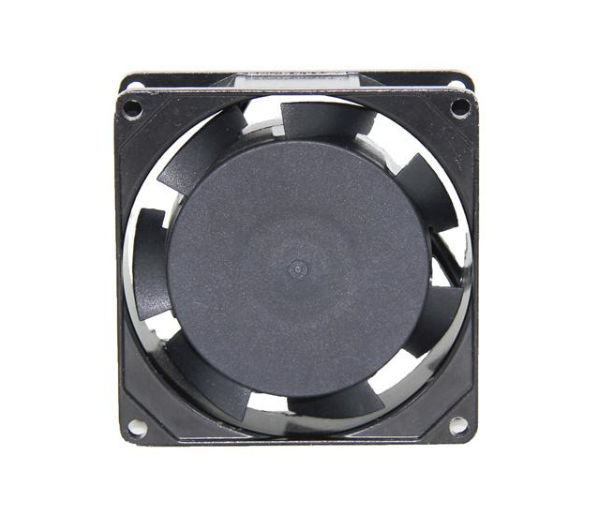

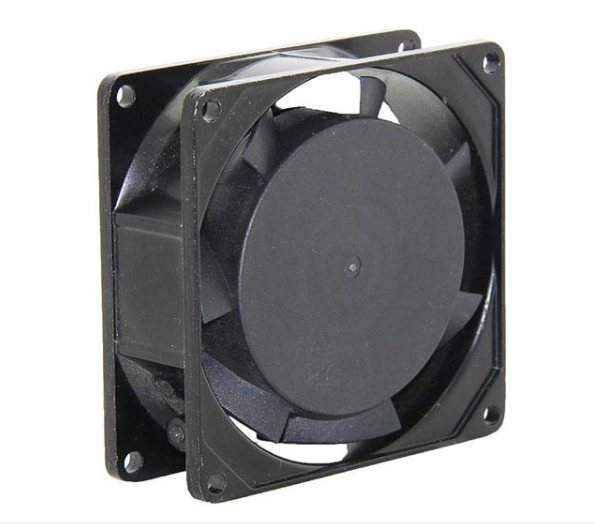

80X80X25

80X80X25



         Genral Specification And Environment


l  Frame: Aluminium Alloy

l  Impeller: Thermal Plastic ,Environmental Protection & Fireproof

l  Bearing: Ball Bearing or Sleeve Bearing

l  Lead Wires: UL Type Red+ / Black –

l  Motor: Impedance Protection, Polarity Reverse Protection, Auto Restart

l  Operating Temperature /Humidity : -10°C~70°C  35%~85%RH

l  Storage   Temperature /Humidity: -10°C~70°C  35%~85%RH


0.00
0.00

商品描述



         Genral Specification And Environment


l  Frame: Aluminium Alloy

l  Impeller: Thermal Plastic ,Environmental Protection & Fireproof

l  Bearing: Ball Bearing or Sleeve Bearing

l  Lead Wires: UL Type Red+ / Black –

l  Motor: Impedance Protection, Polarity Reverse Protection, Auto Restart

l  Operating Temperature /Humidity : -10°C~70°C  35%~85%RH

l  Storage   Temperature /Humidity: -10°C~70°C  35%~85%RH


Specification 　 * Bearing type:　B=Ball Bearing　S=Sleeve Bearing　
SIZE
MODEL
BEARING
VOLTAGE
Freq.
CURRENT
SPEED
AIR FLOW
PRESSURE
NOISE
Weight
(MM)
(V)
(HZ)
(A)
(RPM)
 (CFM)
(mm-H20)
(dB/A)
(g)
80*80*25
ZHA8025H1S
S
110
50/60
0.13/0.11
2450/2900
17/21
1.7/1.9
28.2/33
230
ZHA8025H1B
B
110
50/60
0.13/0.11
2550/3000
18/22
1.78/2.0
28.2/33
ZHA8025H2S
S
220
50/60
0.09/0.08
2450/2900
17/21
1.7/1.9
28.2/33
ZHA8025H2B
B
220
50/60
0.09/0.08
2550/3000
18/22
1.78/2.0
28.2/33

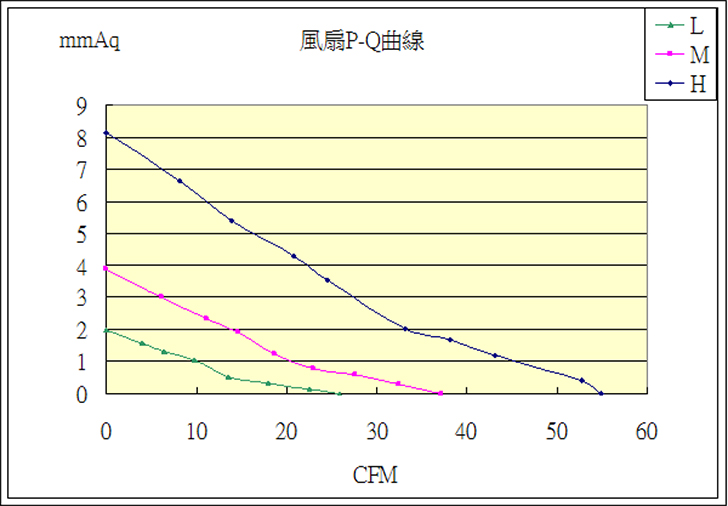

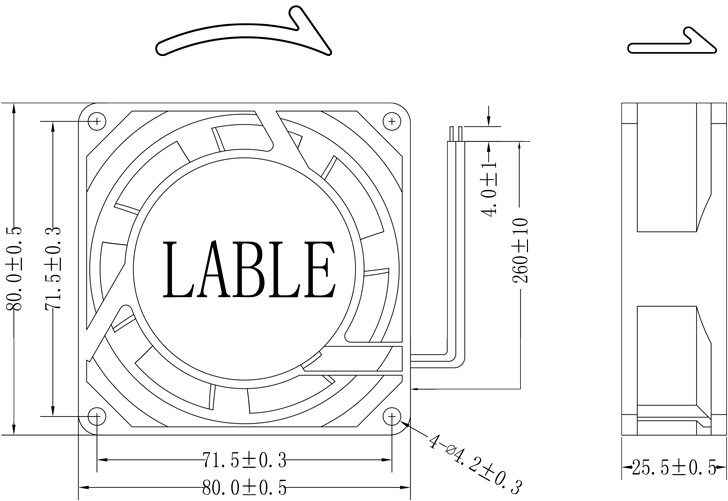

                                                *Dimensions Drawing                                                                      * Characteristic    Curves
