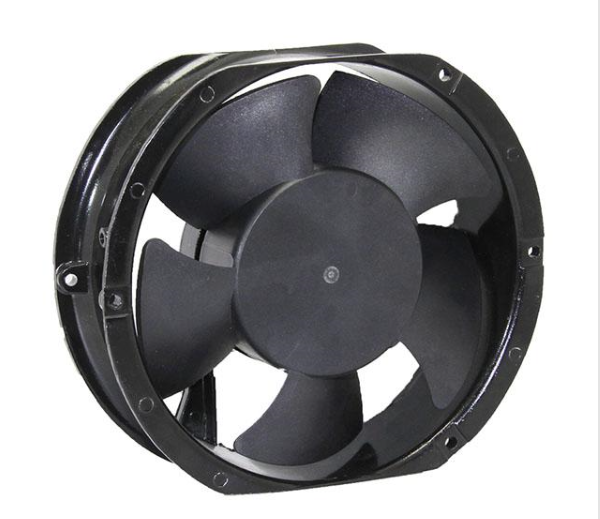

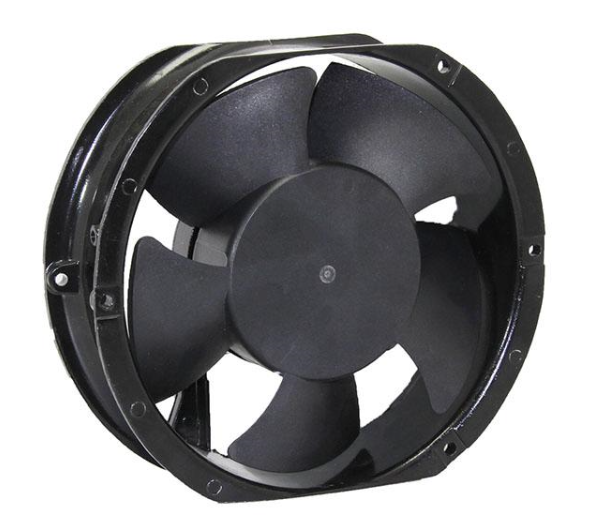

172X150X51
Genral Specification And Environment
l Frame: Aluminium Alloy
l Impeller: Thermal Plastic ,Environmental Protection & Fireproof
l Bearing: Ball Bearing or Sleeve Bearing
l Lead Wires: UL Type Red+ / Black –
l Motor: Impedance Protection, Polarity Reverse Protection, Auto Restart
l Operating Temperature /Humidity : -10°C~70°C 35%~85%RH
l Storage Temperature /Humidity: -10°C~70°C 35%~85%RH
Genral Specification And Environment
l Frame: Aluminium Alloy
l Impeller: Thermal Plastic ,Environmental Protection & Fireproof
l Bearing: Ball Bearing or Sleeve Bearing
l Lead Wires: UL Type Red+ / Black –
l Motor: Impedance Protection, Polarity Reverse Protection, Auto Restart
l Operating Temperature /Humidity : -10°C~70°C 35%~85%RH
l Storage Temperature /Humidity: -10°C~70°C 35%~85%RH
| Specification | * Bearing type: B=Ball Bearing S=Sleeve Bearing | |||||||||
|
SIZE
|
MODEL
|
BEARING
|
VOLTAGE
|
Freq.
|
CURRENT
|
SPEED
|
AIR FLOW
|
PRESSURE
|
NOISE
|
Weight
|
|
(MM)
|
(V)
|
(HZ)
|
(A)
|
(RPM)
|
(CFM)
|
(mm-H20)
|
(dB/A)
|
(g)
|
||
|
172*150*51
|
ZHA17251H1S
|
S
|
110
|
50/60
|
0.63/0.53
|
2500/2800
|
185/220
|
11.1/9.6
|
51/56
|
920
|
|
ZHA17251H1B
|
B
|
110
|
50/60
|
0.63/0.53
|
2600/2950
|
200/225
|
11.5/9.8
|
51/56
|
||
|
ZHA17251H2S
|
S
|
220
|
50/60
|
0.25/0.22
|
2500/2500
|
185/185
|
11.1/9.0
|
51/51
|
||
|
ZHA17251H2B
|
B
|
220
|
50/60
|
0.25/0.22
|
2600/2600
|
200/200
|
11.5/9.3
|
52/52
|
||
|
ZHA17251H3S
|
S
|
380
|
50/60
|
0.14/0.13
|
2600/2550
|
200/190
|
11.5/9.2
|
52/51
|
||
|
ZHA17251H3B
|
B
|
380
|
50/60
|
0.14/0.13
|
2600/2550
|
200/190
|
11.5/9.2
|
52/51
|
||

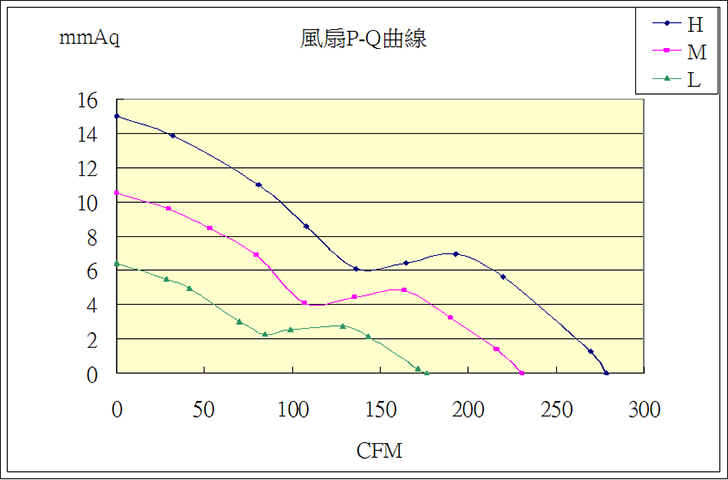

*Dimensions Drawing * Characteristic Curves
