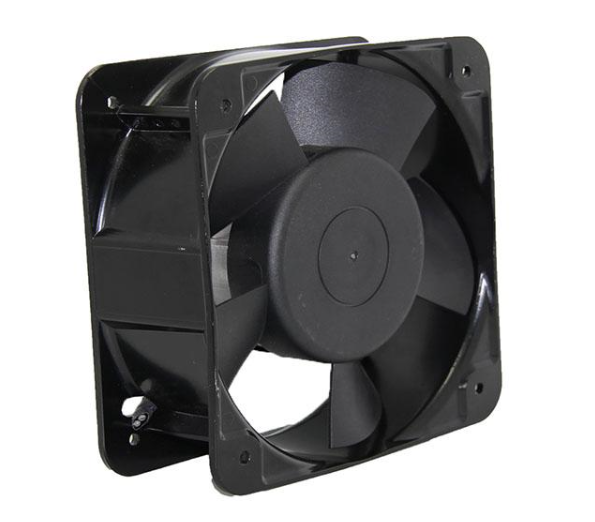

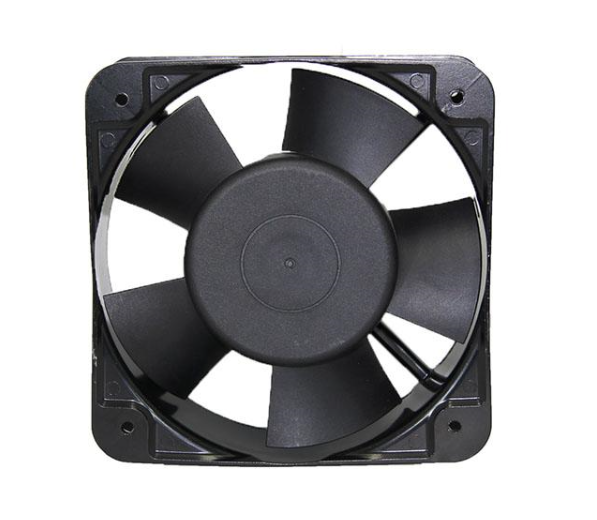

150X50X50

150X50X50



         Genral Specification And Environment


l  Frame: Aluminium Alloy

l  Impeller: Thermal Plastic ,Environmental Protection & Fireproof

l  Bearing: Ball Bearing or Sleeve Bearing

l  Lead Wires: UL Type Red+ / Black –

l  Motor: Impedance Protection, Polarity Reverse Protection, Auto Restart

l  Operating Temperature /Humidity : -10°C~70°C  35%~85%RH

l  Storage   Temperature /Humidity: -10°C~70°C  35%~85%RH


0.00
0.00

商品描述



         Genral Specification And Environment


l  Frame: Aluminium Alloy

l  Impeller: Thermal Plastic ,Environmental Protection & Fireproof

l  Bearing: Ball Bearing or Sleeve Bearing

l  Lead Wires: UL Type Red+ / Black –

l  Motor: Impedance Protection, Polarity Reverse Protection, Auto Restart

l  Operating Temperature /Humidity : -10°C~70°C  35%~85%RH

l  Storage   Temperature /Humidity: -10°C~70°C  35%~85%RH


Specification 　 * Bearing type:　B=Ball Bearing　S=Sleeve Bearing　
SIZE
MODEL
BEARING
VOLTAGE
Freq.
CURRENT
SPEED
AIR FLOW
PRESSURE
NOISE
Weight
(MM)
(V)
(HZ)
(A)
(RPM)
 (CFM)
(mm-H20)
(dB/A)
(g)
150*150*50
ZHA15050H1S
S
110
50/60
0.63/0.53
2500/2800
185/220
11.1/9.6
51/56
920
ZHA15050H1B
B
110
50/60
0.63/0.53
2600/2950
200/225
11.5/9.8
51/56
ZHA15050H2S
S
220
50/60
0.25/0.22
2500/2500
185/185
11.1/9.0
51/51
ZHA15050H1B
B
220
50/60
0.25/0.22
2600/2600
200/200
11.5/9.2
52/52


                                                *Dimensions Drawing                                                                      * Characteristic    Curves
