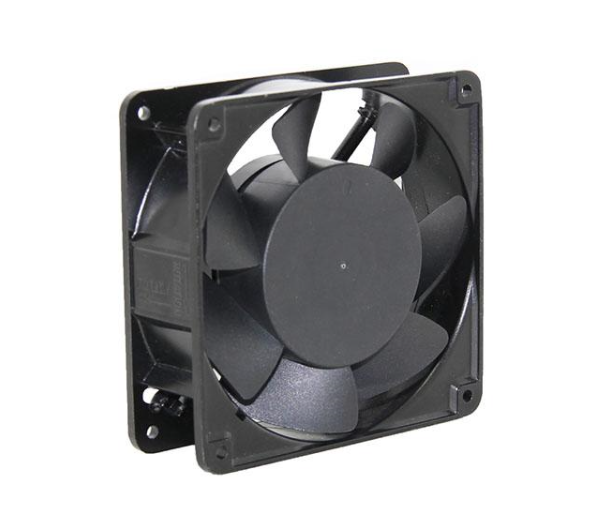

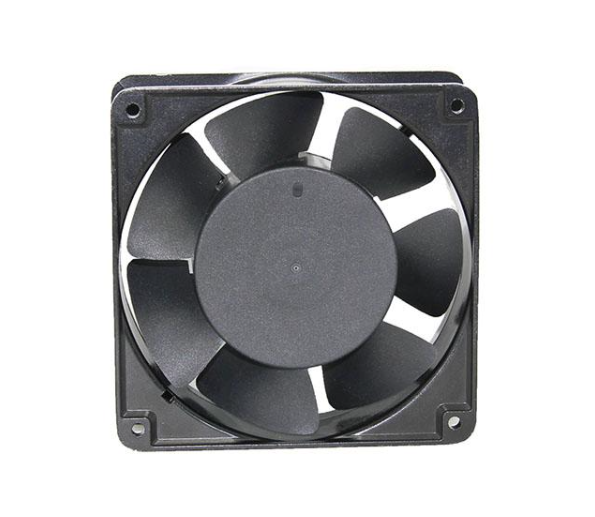

120X120X38
Genral Specification And Environment
l Frame: Aluminium Alloy
l Impeller: Thermal Plastic ,Environmental Protection & Fireproof
l Bearing: Ball Bearing or Sleeve Bearing
l Lead Wires: UL Type Red+ / Black –
l Motor: Impedance Protection, Polarity Reverse Protection, Auto Restart
l Operating Temperature /Humidity : -10°C~70°C 35%~85%RH
l Storage Temperature /Humidity: -10°C~70°C 35%~85%RH
Genral Specification And Environment
l Frame: Aluminium Alloy
l Impeller: Thermal Plastic ,Environmental Protection & Fireproof
l Bearing: Ball Bearing or Sleeve Bearing
l Lead Wires: UL Type Red+ / Black –
l Motor: Impedance Protection, Polarity Reverse Protection, Auto Restart
l Operating Temperature /Humidity : -10°C~70°C 35%~85%RH
l Storage Temperature /Humidity: -10°C~70°C 35%~85%RH
| Specification | * Bearing type: B=Ball Bearing S=Sleeve Bearing | |||||||||
|
SIZE
|
MODEL
|
BEARING
|
VOLTAGE
|
Freq.
|
CURRENT
|
SPEED
|
AIR FLOW
|
PRESSURE
|
NOISE
|
Weight
|
|
(MM)
|
(V)
|
(HZ)
|
(A)
|
(RPM)
|
(CFM)
|
(mm-H20)
|
(dB/A)
|
(g)
|
||
|
120*120*38
|
ZHA1238H1S
|
S
|
110
|
50/60
|
0.24/0.20
|
2600/2850
|
90/102
|
7.40/8.06
|
40/45
|
480
|
|
ZHA1238H1B
|
B
|
110
|
50/60
|
0.24/0.20
|
2650/2950
|
92/105
|
7.49/8.13
|
40/45
|
||
|
ZHA1238H2S
|
S
|
220
|
50/60
|
0.12/0.10
|
2600/2850
|
90/102
|
7.40/8.06
|
40/45
|
||
|
ZHA1238H2B
|
B
|
220
|
50/60
|
0.12/0.10
|
2650/2950
|
92/105
|
7.49/8.13
|
40/45
|
||
|
ZHA1238H3S
|
S
|
380
|
50/60
|
0.07/0.06
|
2550/2850
|
88/102
|
7.36/8.06
|
40/45
|
||
|
ZHA1238H3B
|
B
|
380
|
50/60
|
0.07/0.06
|
2600/2900
|
90/103
|
7.40/8.08
|
40/45
|
||
|
|
|
|
|
|
|
|||||

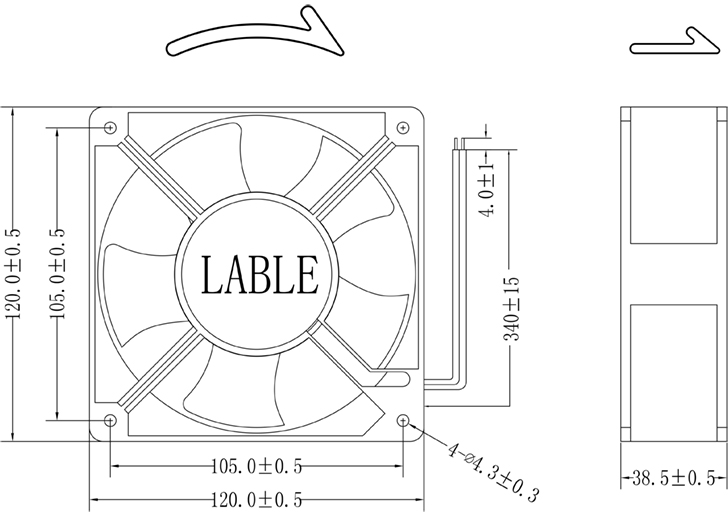

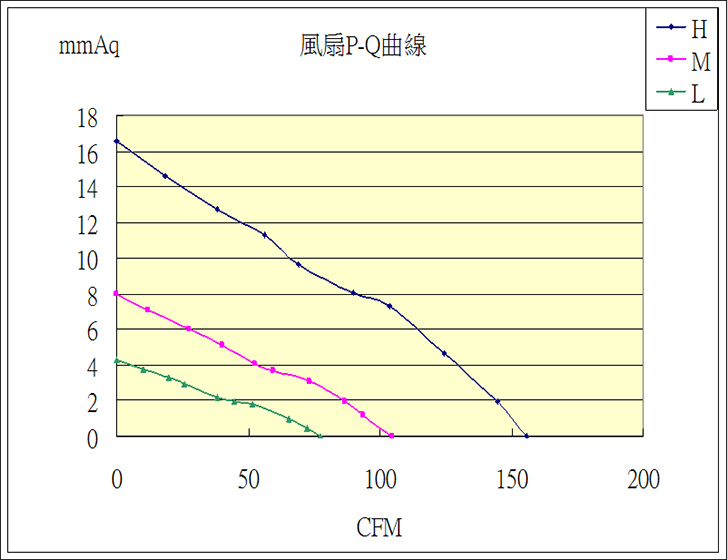

*Dimensions Drawing * Characteristic Curves
