92X92X25

92X92X25



         Genral Specification And Environment


l  Frame: Aluminium Alloy

l  Impeller: Thermal Plastic ,Environmental Protection & Fireproof

l  Bearing: Ball Bearing or Sleeve Bearing

l  Lead Wires: UL Type Red+ / Black –

l  Motor: Impedance Protection, Polarity Reverse Protection, Auto Restart

l  Operating Temperature /Humidity : -10°C~70°C  35%~85%RH

l  Storage   Temperature /Humidity: -10°C~70°C  35%~85%RH


0.00
0.00

商品描述



         Genral Specification And Environment


l  Frame: Aluminium Alloy

l  Impeller: Thermal Plastic ,Environmental Protection & Fireproof

l  Bearing: Ball Bearing or Sleeve Bearing

l  Lead Wires: UL Type Red+ / Black –

l  Motor: Impedance Protection, Polarity Reverse Protection, Auto Restart

l  Operating Temperature /Humidity : -10°C~70°C  35%~85%RH

l  Storage   Temperature /Humidity: -10°C~70°C  35%~85%RH


Specification 　 * Bearing type:　B=Ball Bearing　S=Sleeve Bearing　
SIZE
MODEL
BEARING
VOLTAGE
Freq.
CURRENT
SPEED
AIR FLOW
PRESSURE
NOISE
Weight
(MM)
(V)
(HZ)
(A)
(RPM)
 (CFM)
(mm-H20)
(dB/A)
(g)
92*92*25
ZHA9225H1S
S
110
50/60
0.13/0.11
2400/2800
28/36
3.45/4.7
29/34
240
ZHA9225H1B
B
110
50/60
0.13/0.11
2450/2850
29/37
3.5/4.76
29/34
ZHA9225H2S
S
220
50/60
0.09/0.08
2450/2900
29/37
3.50/4.76
29/34
ZHA9225H2B
B
220
50/60
0.09/0.08
2500/3000
30/38
3.55/4.82
29/34

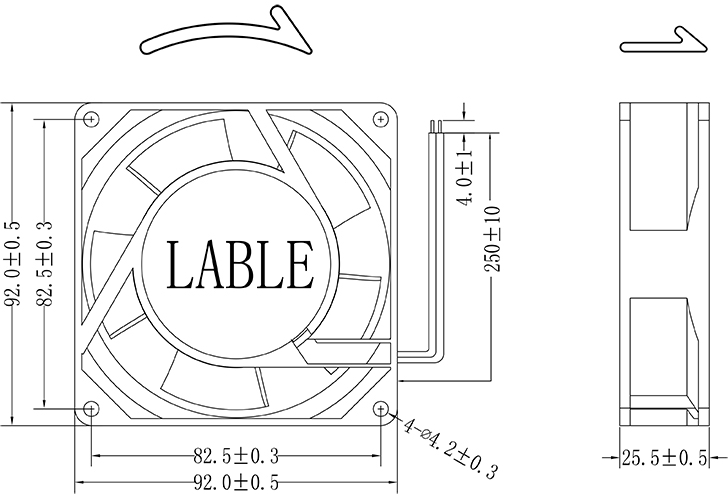

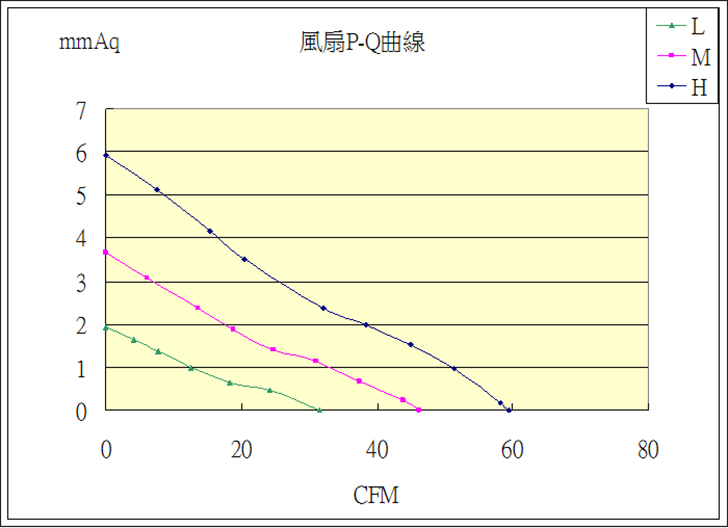

                                                *Dimensions Drawing                                                                      * Characteristic    Curves
